Features
--UL Certified No. E209204 (UL1557)
--1200 V . 10 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
--Low-Loss, Short Circuit Rated IGBTs
--Very Low Thermal Resistance Using AO3 DBC Substrate
--Dedicated Vs Pins Simplify PCB Layout
--Separate Open-Emitter Pins from Low Side IGBTs for Three-Phase Current Sensing
--Single-Grounded Power Supply
--LVIC Temperature Sensing Built-In for Temperature Monitoring
--Isolation Rating: 2500 Vrms / 1 min.
Applications
Motion Control - Industrial Motor (AC 400V Class)
General Description

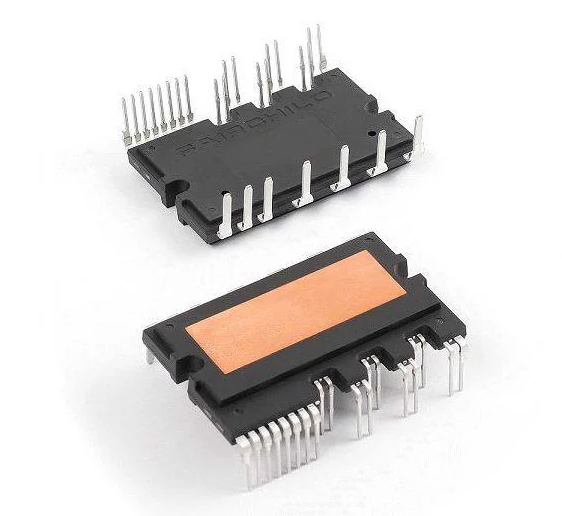

FSBB10CH120D is an advanced Motion SPM® 3module providing a fully featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the builtin IGBTs to minimize EMl and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown, thermal monitoring of drive IC, and fault reporting. The built-in, high speed HVIC requires only a single supply voltage and translates the incoming logic level gate inputs to the high voltage, high current drive signals required to properly drive the module's internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.
