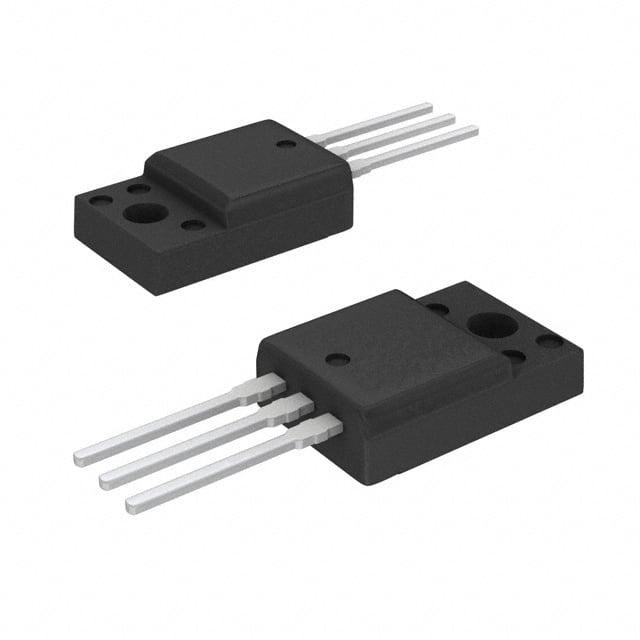

FQPF10N60C onsemi / Fairchild MOSFET

FQP10N60C / FQPF10N60C
N-Channel QFET MOSFET

600 V, 9.5A 730 m Ω

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are well suited for high efficiency switched mode power supplies, active power factor correction electronic lamp ballasts based on half bridge topology.

Features

9.5 A, 600 V, RDs(on) = 730m Ω (Max.) @ VGs = 10 V  lD = 4.75 A

Low Gate Charge (Typ. 44 nC)

Low Crss (Typ. 18pF)

100% Avalanche Tested
