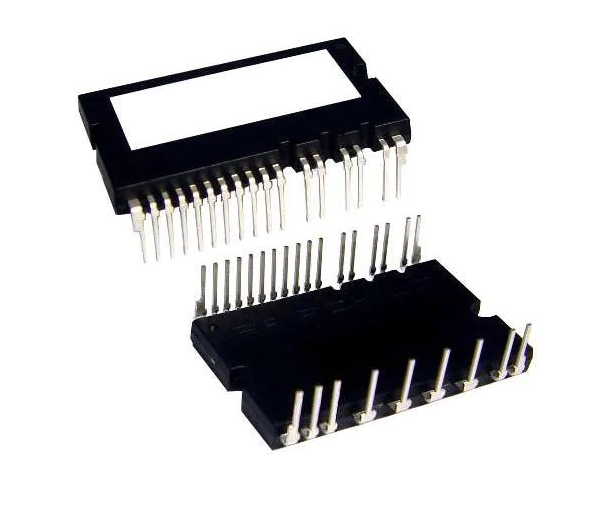

FNC42060F I FNC42060F2
Motion SPM® 45 Series
Features
--UL Certified No.E209204 (UL1557)
--600 V - 20 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
--Low Thermal Resistance Using Ceramic Substrate
--Low-Loss, Short-Circuit Rated IGBTs
--Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout
--Built-In NTC Thermistor for Temperature Monitoring
--Separate Open-Emitter Pins from Low Side IGBTs for Three-Phase Current Sensing
--Single-Grounded Power Supply
--Optimized for 5 kHz Switching Frequency
--Isolation Rating: 2000 Vrms / min.
Applications
Motion Control - Home Appliance / Industrial Motor
General Description
FNC42060F I FNC42060F2 is an advanced Motion SPM® 45 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMl and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown, thermal monitoring, and fault reporting.The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's robust short-circuit-rated IGBTs. Separate negative lGBT terminals are available for each phase to support the widest variety of control algorithms.
