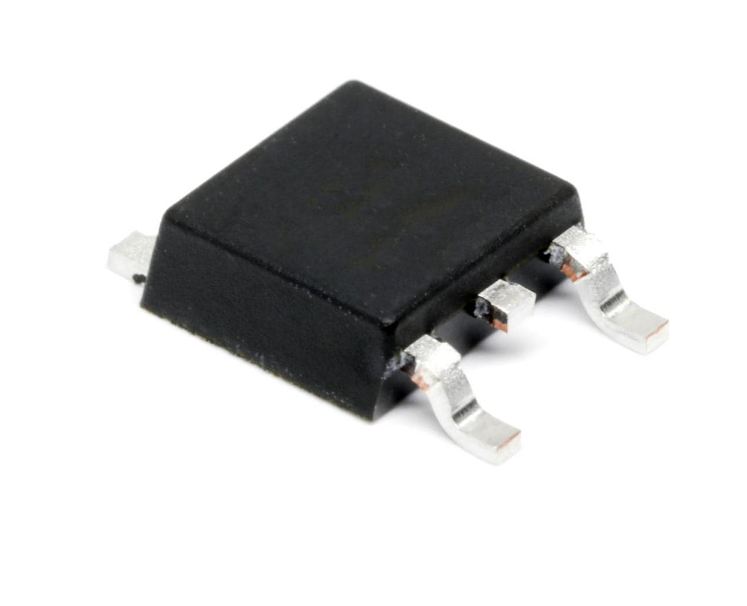

FDD6680AS
30V N-Channel PowerTrench®SyncFET™
General Description
The FDD6680AS is designed to replace a single MOSFET and Schot tky diode in synchronous DC/DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low Rds(on) and low gate charge. The FDD6680AS includes an integrated Schot tky diode using Fairchild's monolithic SyncFET technology. The performance of the FDD6680AS as the low-side switch in asynchronous rectifier is indistinguishable from the performance of the FDD6680A in parallel with a Schot tky diode.
Applications
--DC/DC converter
--Low side notebook
Features
--55 A, 30V Rds(on) max= 10.5 mΩ @ Vgs = 10 V
Rds(on) max= 13.0 mΩ @ Vgs = 4.5 V
--Includes SyncFET Schot tky body diode
--Low gate charge (21nC typical)
--High performance trench technology for extremely low Rds(on)
--High power and current handling capability
