ESD Protection Diode

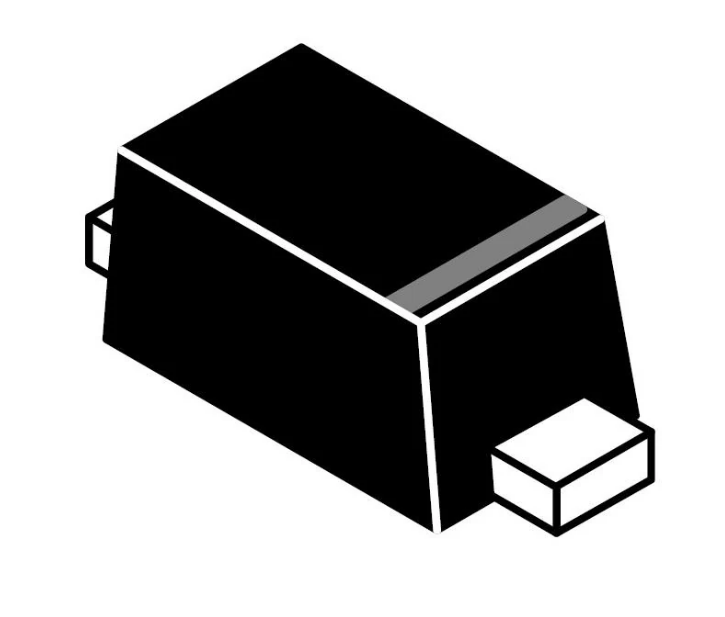

Micro-Packaged Diodes for ESD Protection
The ESD9B Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage.and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at a premium.
Specification Features
--Low Capacitance 15 pF
--Low Clamping Voltage
--Small Body Outline Dimensions: 0.039” x 0.024” (1.0mm x 0.60mm)
--Low Body Height: 0.016"(0.4 mm)
--Stand-off Voltage: 3.3 V, 5 V
--Low Leakage
--Response Time is < 1 ns
--IEC61000-4-2 Level 4 ESD Protection
--AEC-O101 Oualified and PPAP Capable
--SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
---This is a Pb-Free Device
Mechanical Characteristics
CASE: Void-free, transfer-molded, thermosetting plastic
Epoxy Meets UL 94 V-0
LEAD FINISH: 100% Matte Sn (Tin)
MOUNTING POSITION: Any
QUALIFIED MAX REFLOW TEMPERATURE: 260°C Device Meets MSL 1 Requirements
