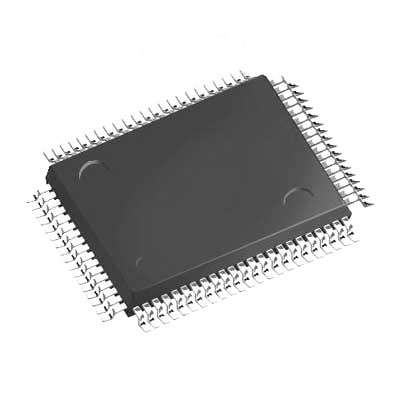

ES1688F
Feature:
--Single, mixed-signal, 16-bit stereo VLSI chip
--Record, compress, and playback voice, sound and music
--High-quality 20 voice, ESFM™ FM music synthesizer, patents pending
--6 channel mixer with stereo inputs for line-in, CD-ROM, TV, and a mono input for microphone
--Mixer controlled record and playback with progammablelogarithmic volume controls
--Programmable sample rate from 4 KHz to 44.I KHz for record and playback
--MPU401(UART mode), Sound Blaster MIDI interface for wavetable synthesizers and MlDI devices
--Serial Port interface to external DSP optionally controls full-duplex
analog operation
--Separate wavetable serial port interface for access to the music DAC
--PC speaker I/O with volume control
--Software address mapping, and DMA and IRQ selections form other board plug-and-play
--Programmed I/O and DMA data transfers including demand transfer DMA
--Address decode for joystick
--Advanced power management with self-timed power-down,auto wake-up, and suspend/resume to and from disk
--Patented ESPCM™ compression
--Supports 3.3 volt or 5.0 volt operation
--Supports M icrosoft® Windows™, Windows NT™, Windows for Work Groups, Windows 95 and Windows Sound System
--Supports 1BM OS/2®
--Supports PC games and applications for Sound Blaster™ and Sound Blaster Pro™ modes
--Supports FM music synthesis in OPL™ 3 mode
APPLICATIONS :
--PC Audio
--Business Audio
--Multimedia PC
--PC Games
--Music Synthesis
IMPLEMENTATION PLATFORMS
--Desktop Systems
--Notebooks
--Motherboards
--Sound Cards
--Multifunction Cards
--Voice/Fax/Modem Cards
