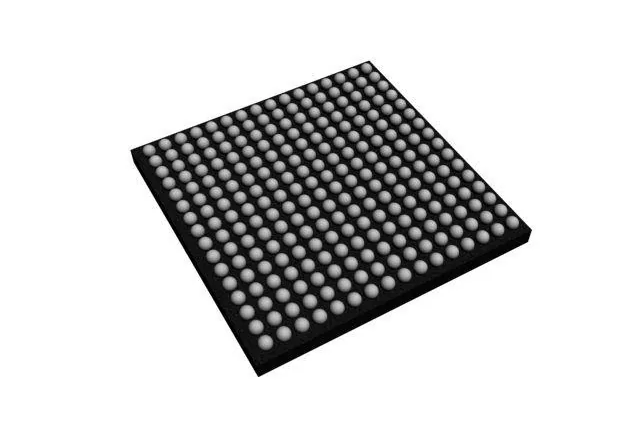

EP2C5F256C6
Features:
--High-density architecture with 4,608 to 68 416 LEs
**M4K embedded memory blocks
**Up to 1.1 Mbits of RAM available without reducing availablelogic
**4,096 memory bits per block (4,608 bits per block including 512parity bits)
**Variable port configurations of x1, x2, x4, x8, x9, x16, x18, x32and x36
**True dual-port (one read and one write, two reads, or two writes) operation for x1, x2, x4, x8, x9,x16, and x18 modes
**Byte enables for data input masking during writesUp to 260-MHz operation
--Embedded multipliers
**Up to 150 18 x 18-bit multipliers are each configurable as two independent 9- x 9-bit multipliers with up to 250-MHz performance
**Optional input and output registers
--Advanced I/O support
**High-speed differential I/O standard support, including LVDSRSDS, mini-LVDS, LVPECL, differential HSTL, and differential SSTL
**Single-ended I/O standard support, including 2.5-V and 1.8-V, SSTL class I and Il, 1.8-V and 1.5-V HSTL class I and II, 3.3-V PCI and PCI-X 1.0, 3.3- , 2.5- , 1.8- , and 1.5-V LVCMOS, and 3.3-, 2.5- and 1.8-V LVTTL
**Peripheral Component Interconnect Special Interest Group (PClSIG) PCI Local Bus Specification, Revision 3.0 compliance for 3.3-Voperation at 33 or 66 MHz for 32- or 64-bit interfaces
**PCI Express with an external TI PHY and an Altera PCI Express x1 Megacore®function
**133-MHz PCI-X 1.0 specification compatibility
**High-speed external memory support, including DDR, DDR2 and SDR SDRAM, and ODRII SRAM supported by drop in Altera IP MegaCore functions for ease of use
**Three dedicated registers per I/O element (IOE): one input register, one output register, and one output-enable register
**Programmable bus-hold feature
**Programmable output drive strength feature
**Programmable delays from the pin to the IOE or logic array
**I/O bank grouping for unique VCCIO and/or VREF bank settings
**MultiVolt™I/O standard support for 1.5-, 1.8-, 2.5-, and3.3 interfaces
**Hot-socketing operation support
**Tri-state with weak pull-up on l/O pins before and during configuration
**Programmable open-drain outputs
**Series on-chip termination support
--Flexible clock management circuitry
**Hierarchical clock network for up to 402.5-MHz performance
**Up to four PLLs per device provide clock multiplication and division, phase shifting, programmable duty cycle, and external clock outputs, allowing system-level clock management and skew control
**Up to 16 global clock lines in the global clock network that drive throughout the entire device
--Device configuration
**Fast serial configuration allows configuration times less than100 ms
**Decompression feature allows for smaller programming file storage and faster configuration time
**Supports multiple configuration modes: active serial, passive serial, and JTAG-based configuration
**Supports configuration through low-cost serial configuration devices.
**Device configuration supports multiple voltages (either 3.3, 2.5,or 1.8 V)
--Intellectual property
**Altera megafunction and Altera MegaCore function support, and Altera Megafunctions Partners Program (AMPP SM ) megafunction support, for a wide range of embedded processors, on-chip and off chip interfaces, peripheral functions, DSP functions, and communications functions and protocols. Visit the Altera IPMegaStore at www.altera.com to download IP MegaCore functions.
