Intel’s Smart 5 boot block flash memory family provides 2-, 4-, and 8-Mbit memories featuring high-density, low-cost, nonvolatile, read/write storage solutions for a wide range of applications. Their asymmetrically blocked architecture, flexible voltage, and extended cycling provide highly flexible components suitable for embedded code execution applications, such as networking infrastructure and office automation.
--SmartVoltage Technology
**Smart 5 Flash: 5 V Reads, 5 V or 12 V Writes
**Increased Programming Throughput at 12 V VPP
--Very High-Performance Read
**2-, 4-Mbit: 60 ns Access Time
**8-Mbit: 70 ns Access Time
--x8 or x8/x16-Configurable Data Bus
--Low Power Consumption
**Max 60 mA Read Current at 5 V
**Auto Power Savings: <1 mA Typical Standby Current
--Optimized Array Blocking Architecture
**16-KB Protected Boot Block
**Two 8-KB Parameter Blocks
**96-KB and 128-KB Main Blocks
**Top or Bottom Boot Locations
--Extended Temperature Operation
**–40 °C to +85 °C
--Industry-Standard Packaging

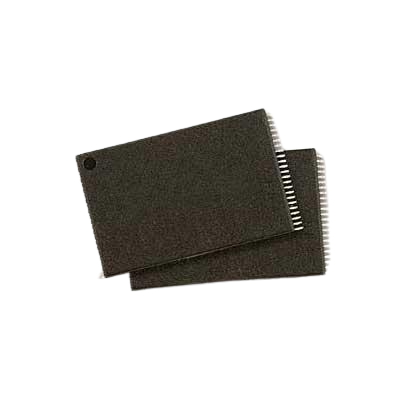

**40, 48-Lead TSOP, 44-Lead PSOP
--Extended Block Erase Cycling
**100,000 Cycles at Commercial Temp
**10,000 Cycles at Extended Temp
--Hardware Data Protection Feature
**Absolute Hardware-Protection for Boot Block
**Write Lockout during Power Transitions
--Automated Word/Byte Program and Block Erase
**Command User Interface
**Status Registers
**Erase Suspend Capability
--SRAM-Compatible Write Interface
--Reset/Deep Power-Down Input
**Provides Low-Power Mode and Reset for Boot Operations
--Pinout Compatible 2, 4, and 8 Mbit
--ETOX™ Flash Technology
**0.6 µETOX IV Initial Production
**0.4 µETOX V Later Production
