Features
--1-kV isolation (operational): 1-second test
--Continuous voltage applied across isolation barrier: 60 VDC, 42.5 VAC --UL1950 recognized component

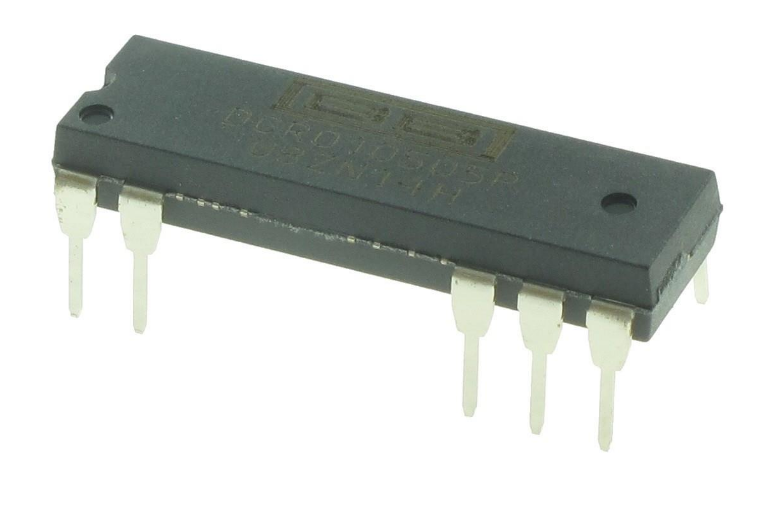

--10-pin PDIP and 12-pin SOP packages
--Input voltage: 5 V, 12 V, or 24 V
--Output voltage: 3.3 V or 5 V
--Device-to-device synchronization
--400-kHz switching frequency
--Short-circuit protection
--Thermal protection
--High efficiency
--125 FITs at 55°C
Applications
--Point-of-use power conversion
--Digital interface power
--Ground loop elimination
--Power-supply noise reduction
Description
The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 1-W nominal, galvanically-isolated output power capability, this range of DC/DC converters offer very low output noise, thermal protection, and high accuracy.
This combination of features and small size makes the DCR01 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.
