Features
- +0.5 LSB DNL
- 16-Bit Monotonic
- 土1 LSB INL
- Low Noise: 12 nVNHz
- Low Power: Ipo = 2 A
- 2.7-V to 5.5-V Ana-log Power Supply2-mA Full-Scale Current +20%.with VRer = 10 V
- 50-MHz Serial Interface
- 0.5-us Settling Time
- 4-Quadrant Multiplying Reference
- Reference Bandwidth: 10 MHz
- +10-V Reference Input
- Reference Dynamics: -105 THD

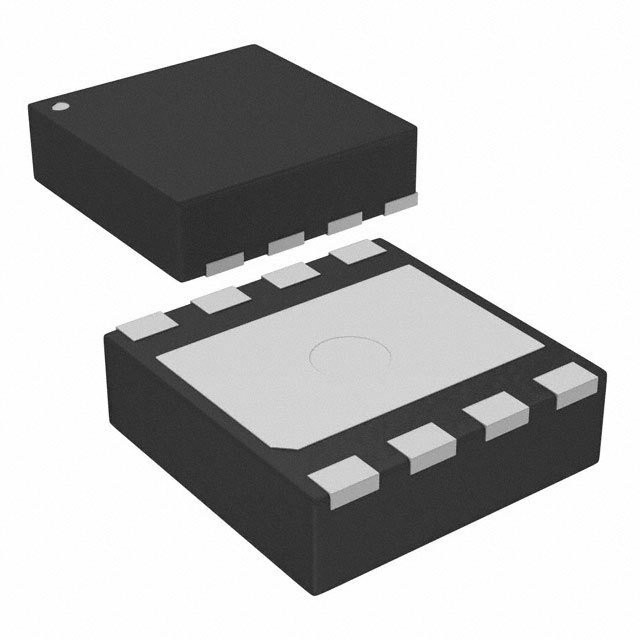

- Tiny 8-Lead 3 x 3 mm VSON and 3 x 5 mmVssOP Packages
- Industry-Standard Pin Configuration
Applications
- Automatic Test Equipment
- Instrumentation
- Digitally Controlled Calibration
- Industrial Control PLCs
DescriptionThe DAC8811 multiplying digital-to-ana-logca converter(DAC) is designed to operate from a single 2.7-V to5.5-V supply
input voltage VREFThe applied external referencedetermines the fullscale output current. An internafeedback resistor (R-s) provides temperature trackingfor the fullscale output when combined with anexternal l-to-V precision amplifier.
A serial data interface offers high speed, three wiremicrocontroller-compatible inputs using data-in (SDl).clock (CLK), and chip-select (CS
On power-up, the DAC register is filled with zeroes.and the DAC output is at zero scale.The DAC8811 is packaged in space saving 8-leadVsON and vssoP packages.
