FEATURES
- INDUSTRY STANDARD PINOUT
- FULL 土10V SWING WITH Ve. = 112VDC
- DIGITAL INPUTS ARE TTL- ANDCMOS-COMPATIBLE
- GUARANTEED SPECIFICATIONS WITH
±12V AND ±15V SUPPLIES
- ±112LSB MAXIMUM NONLINEARITY:
0 degree to +70 degree
- SETTLING TIME: 4us max to +0.01% of
- Full Scale
- GUARANTEED MONOTONICITY:
0 degree to +70 degree
- TWO PACKAGE OPTIONS: Hermetic side.brazed ceramic and low-cost moldedplastic

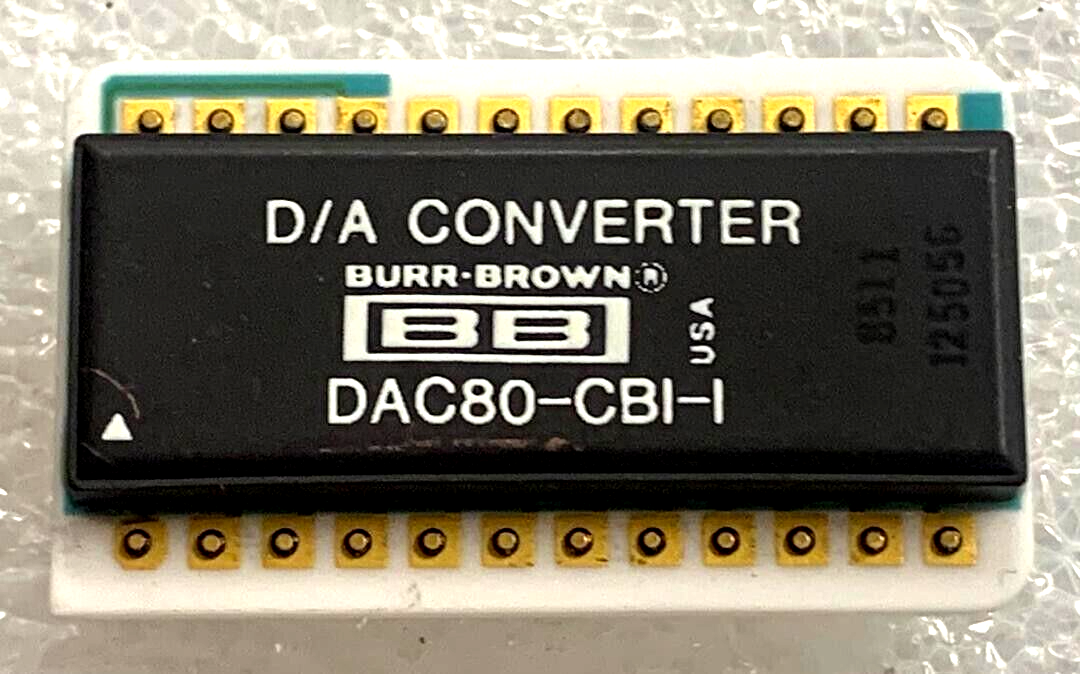

DESCRIPTIONlhis monolhthic digilal-to-analog converter is pin-forpin equnvalent to the industry slandard DAC80 firsintroduced by Burr-Browm. lts single chip desimn includes the ouput amplifier and provides a highlstable referenee capable of supplying up to 2.SmA toan external load without degradation of DA perfor3ce.
Ihis converter uses proven eircut techniques to provide accurate and reliable performanee over temperature and power supply wariatons. The use of a buriedzener diode as the basis for the internal referenetcontributes to the high slability and low noise of thedevice. Advanced methods of laser trimmming result inprecision output cuent and output amplifier feedback
