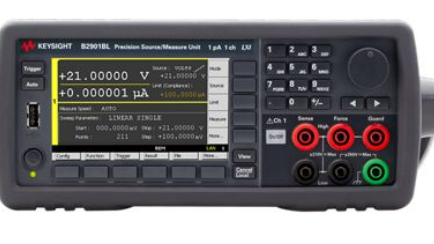

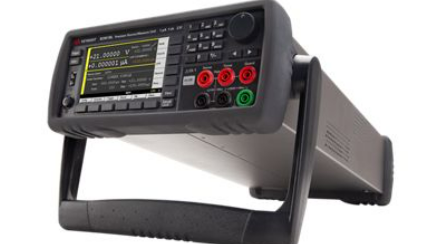

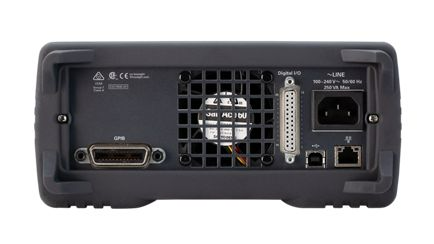

The Keysight B2901BL precision source / measure unit (SMU) is a 1-channel, compact, and cost-effective benchtop SMU with the capability to source and measure both voltage and current with high accuracy.
The 4-quadrant source and measurement capabilities enable taking I/V measurements without configuring multiple instruments.
Measurement Capabilities
- Configuration supports one-channel setup
- Source resolution at 10 pA /1 μV, measurement resolution at 1 pA / 100 nV
- Maximum output at 21 V, 1.5 A DC
- Waveform generation (arbitrary) and digitizing capabilities from 200 μs interval
Key Features
- Measurement capabilities with an integrated 4-quadrant source
- Color 4.3-inch display supports both graphical and numerical view modes
- Application software facilitates PC-based instrument control included at no charge
- High throughput and SCPI command supporting conventional SMU's command set
