Features
Fast Read Access Time - 150 ns
Automatic Page Write Operation
- Internal Address and Data Latches for 64 Bytes
Fast Write Cycle Times
- Page Write Cycle Time: 10 ms Maximum (Standard)
2 ms Maximum (Option)
- 1 to 64 byte Page Write Operation
Low Power Dissipation
- 40 mA Active Current
-100 UA CMOS Standby Current
Hardware and Software Data Protection
DATA Polling and Toggle Bit for End of Write Detection
High Reliability CMoS Technology
-Endurance: 100,000 Cycles
-Data Retention: 10 Years
Single 5 V ±10% Supply
CMOS and TTL Compatible Inputs and Outputs
JEDEC Approved Byte-wide Pinout
Commercial and Industrial Temperature Ranges
Description

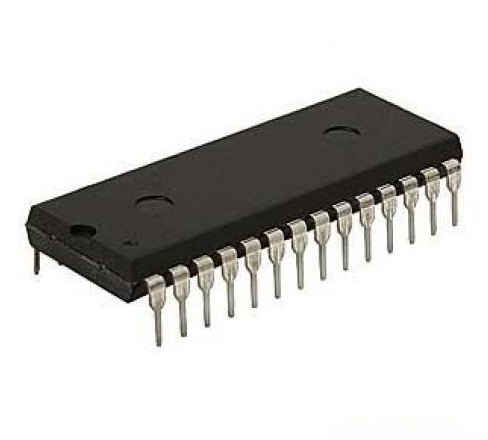

The AT28C64B is a high-performance electrically-erasable and programmable readonly memory (EEPROM) lts 64K of memory is organized as 8,192 words by 8 bitsManufactured with Atmel's advanced nonvolatile CMOS technology.
