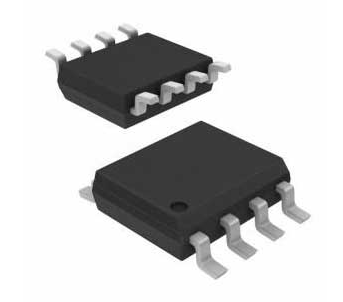

| Description The Atmel® AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of eight bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. AT24C16C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface. Standard Features • Low-voltage and standard-voltage operation • VCC = 1.7V to 5.5V • Internally organized as 2,048 x 8 (16K) • I2C-compatible (2-wire) serial interface • Schmitt Trigger, filtered inputs for noise suppression • Bidirectional data transfer protocol • 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) compatibility • Write Protect pin for hardware data protection • 16-byte Page Write mode • Partial page writes allowed • Self-timed write cycle (5ms max) • High-reliability • Endurance: 1,000,000 write cycles • Data retention: 100 years • Green package options (Pb/Halide-free/RoHS compliant) • 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA • Die options: wafer form and tape and reel |
