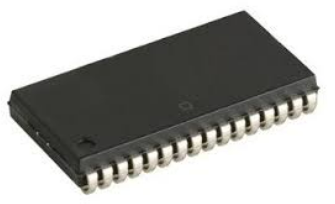

| Features • AS7C4096 (5V version) • AS7C34096 (3.3V version) • Industrial and commercial temperature • Organization: 524,288 words × 8 bits • Center power and ground pins • High speed - 10/12/15/20 ns address access time - 5/6/7/8 ns output enable access time • Low power consumption: ACTIVE - 1375 mW (AS7C4096) / max @ 12 ns - 576 mW (AS7C34096) / max @ 10 ns • Low power consumption: STANDBY - 110 mW (AS7C4096) / max CMOS - 72 mW (AS7C34096) / max CMOS • Equal access and cycle times • Easy memory expansion with CE, OE inputs • TTL-compatible, three-state I/O • JEDEC standard packages - 400 mil 36-pin SOJ - 44-pin TSOP 2 • ESD protection ≥ 2000 volts • Latch-up current ≥ 100 mA |
