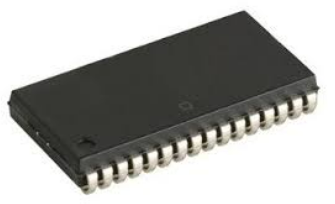

| Features • AS7C4098 (5V version) • AS7C34098 (3.3V version) • Industrial and commercial temperature • Organization: 262,144 words × 16 bits • Center power and ground pins • High speed - 10/12/15/20 ns address access time - 5/6/7/8 ns output enable access time • Low power consumption: ACTIVE - 1375 mW (AS7C4098)/max @ 12 ns - 576 mW (AS7C34098)/max @ 10 ns • Low power consumption: STANDBY - 110 mW (AS7C4098)/max CMOS - 72 mW (AS7C34098)/max CMOS • Individual byte read/write controls • Easy memory expansion with CE, OE inputs • TTL- and CMOS-compatible, three-state I/O • 44-pin JEDEC standard packages - 400-mil SOJ - TSOP 2 • ESD protection ≥ 2000 volts • Latch-up current ≥ 100 mA |
