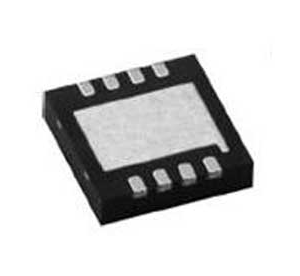

| General Description The AS1310 is an ultra low IQ hysteretic step-up DC-DC converter optimized for light loads (60mA), where it achieves efficiencies of up to 92%. Key Features Input voltage range: 0.7V to 3.6V Fixed output voltage range: 1.8V to 3.3V Output current: 60mA @ VIN=0.9V, VOUT=1.8V Quiescent current: 1µA (typ.) Shutdown current: < 100nA Up to 92% efficiency Output disconnect in shutdown Feedthrough mode when VIN > VOUT Adjustable low battery detection No external diode or transistor required Over temperature protection TDFN (2x2) 8-pin package Applications The AS1310 is an ideal solution for single and dual cell powered devices as blood glucose meters, remote controls, hearing aids, wireless mouse or any light-load application. |
