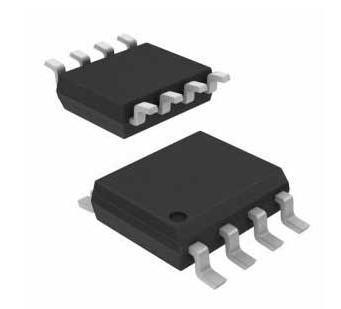

| General Description The AP7217A low-dropout linear regulator operates from a 3.3V to 5.5V supply and delivers a guaranteed 600mA (min) continuous load current. The high-accuracy output voltage is preset to an internally trimmed voltage. An active-low open-drain reset output remains asserted for at least 200ms (TYP) after output voltage reaches regulation. The space-saving SOP-8L and SOP-8L-EP packages are suitable for “pocket” and hand-held application. Features • Very Low Dropout Voltage • Low Current Consumption: Typ. 50μA • Output Voltage: 3.3V • Guaranteed 600mA (min) Output • Input Range up to 5.5V • Current Limiting • Stability with Low ESR Capacitors • Thermal shutdown Protection • Low Temperature Coefficient • SOP-8L and SOP-8L-EP: Available in “Green” Molding Compound (No Br, Sb) • Lead Free Finish/ RoHS Compliant (Note 1) Applications • HD/ Blue Ray DVD & MP3/4 Players • CD and MP3 Players • Cellular and PCS Phones • Digital Still Camera • Hand-Held Computers |
