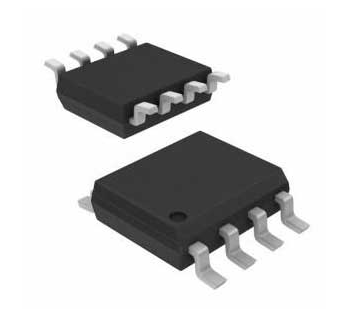

| General Description AP1250GM/H is a linear regulator designed as a cost-effective solution for active termination of DDR SDRAM. The converting voltage range is from 1.6V to 6V into a desired output voltage, which is adjusted by two external resistors. The current sourcing and sinking capability of the regulator is up to 1.5A/3A while the output voltage within 2%/3%. Features ▼Ideal for DDR-I and DDR-II applications ▼Capable of sourcing and sinking current 1.5A/3A ▼Current limiting protection ▼Thermal protection ▼Current-shoot-through protection ▼High accuracy output voltage at full load ▼Minimum external components ▼Adjustable VOUTby external resistors ▼Shutdown for standby or suspend mode operation with high-impedance output |
