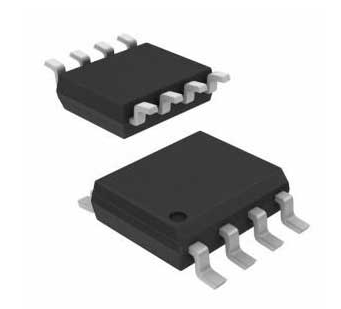

| General Description The AOZ1021 is a synchronous high efficiency, simple to use, 3A buck regulator. The AOZ1021 works from a 4.5V to 16V input voltage range, and provides up to 3A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1021 comes in an SO-8 packages and is rated over a -40°C to +85°C ambient temperature range. Features ● 4.5V to 16V operating input voltage range ● Synchronous rectification: 100mΩ internal high-side switch and 20mΩ Internal low-side switch ● High efficiency: up to 95% ● Internal soft start ● 1.5% initial output accuracy ● Output voltage adjustable to 0.8V ● 3A continuous output current ● Fixed 500kHz PWM operation ● Cycle-by-cycle current limit ● Pre-bias start-up ● Short-circuit protection ● Thermal shutdown ● Small size SO-8 package Applications ● Point of load DC/DC conversion ● PCIe graphics cards ● Set top boxes ● DVD drives and HDD ● LCD panels ● Cable modems ● Telecom/networking/datacom equipment |
