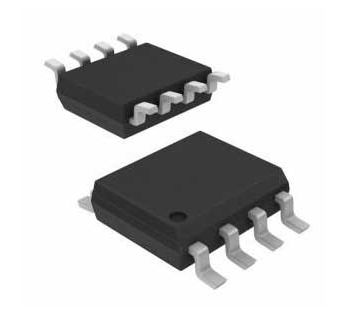

| General Description The AOZ1016 is a high efficiency, simple to use, 2A buck regulator. The AOZ1016 works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1016 comes in an SO-8 package and is rated over a -40°C to +85°C ambient temperature range. Features ●4.5V to 16V operating input voltage range ●130mΩ internal PFET switch for high efficiency: up to 95% ●Internal Schot tky Diode ●Internal soft start ●Output voltage adjustable to 0.8V ●2A continuous output current ●Fixed 500kHz PWM operation ●Cycle-by-cycle current limit ●Short-circuit protection ●Under voltage lockout ●Output over voltage protection ●Thermal shutdown ●Small size SO-8 package Applications ●Point of load DC/DC conversion ●PCIe graphics cards ●Set top boxes ●DVD drives and HDD ●LCD panels ●Cable modems ●Telecom/networking/datacom equipment |
