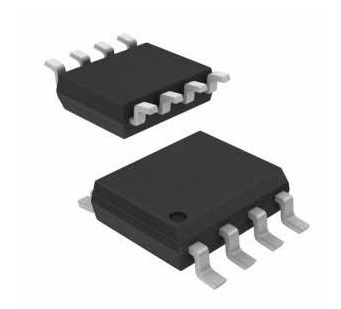

| General Description The AO4924 uses advanced trench technology to provide excellent R DS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters. A monolithically integrated Scho-ttky diode in parallel with the synchronous MOSFET to boost efficiency further. Product Summary FET1 FET2 VDS (V) = 30V VDS(V) = 30V ID = 9A ID=7.3A (VGS = 10V) RDS(ON) < 15.8mΩ <24mΩ (VGS = 10V) RDS(ON) < 19.5mΩ <29mΩ (VGS = 4.5V) 100% UIS Tested 100% Rg Tested |
