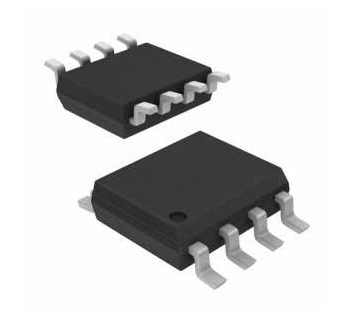

| General Description The AO4900 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters. A Scho-ttky diode is co-packaged in parallel with the synchronous MOSFET to boost efficiency further.Standard Product AO4900 is Pb free (meets ROHS & Sony 259 specifications). AO4900L is a Green Product ordering option. AO4900 and AO4900L are electrically identical. Features VDS (V) = 30V ID = 6.9A (VGS = 10V) RDS(ON) < 27mΩ (VGS = 10V) RDS(ON) < 32mΩ (VGS = 4.5V) RDS(ON) < 50mΩ (VGS = 2.5V) SCHOTTKY VDS (V) = 30V, IF = 3A, VF=0.5V@1A |
