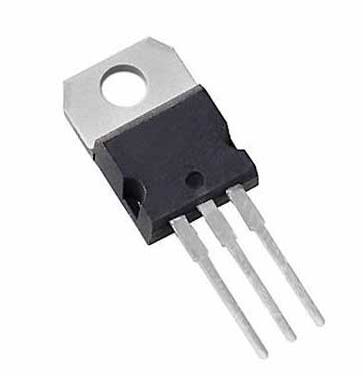

| GENERAL DESCRIPTION The The AMS2910 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. FEATURES ● Three Terminal Adjustable or Fixed Voltages* 1.5V, 2.5V, 2.85V, 3.3V, and 5.0V ● Output Current of 1A ● Operates Down to 1V Dropout ● Line Regulation: 0.2% Max. ● Load Regulation: 0.4% Max. ● Available in TO-220, TO-263, TO-252 and SOT-223 packages APPLICATIONS ● High Efficiency Linear Regulators ● Post Regulators for Switching Supplies ● 5V to 3.3V Linear Regulator ● Battery Chargers ● Active SCSI Terminators ● Power Management for Notebook ● Battery Powered Instrumentation |
