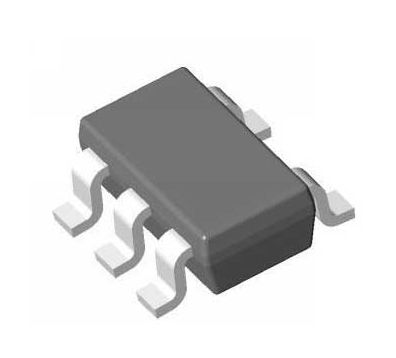

| General Description The AME8801/8812/8840 family of positive, linear regulators feature low quiescent current (30mA typ.) with low dropout voltage, making them ideal for battery applications. The space-saving SOT-25/TSOT-25 & SOT-26/TSOT-26 packages are attractive for "Pocket" and "Hand Held" applications. These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the "Worst" operating conditions. In applications requiring a low noise, regulated supply, place a 1000 pF capacitor between Bypass and Ground. The AME8801 is stable with an output capacitance of 2.2mF or greater. Features • Very Low Dropout Voltage • Guaranteed 300mA Output • Accurate to within 1.5% • 30mA Quiescent Current • Over-Temperature Shutdown • Current Limiting • Short Circuit Current Fold-back • Noise Reduction Bypass Capacitor • Power-Saving Shutdown Mode • Space-Saving SOT-25/TSOT-25, SOT-26/TSOT-26 Packages • Factory Pre-set Output Voltages • Low Temperature Coefficient • All AME's Lead Free Product Meet RoHS Standards Applications • Instrumentation • Portable Electronics • Wireless Devices • Cordless Phones • PC Peripherals • Battery Powered Widgets |
