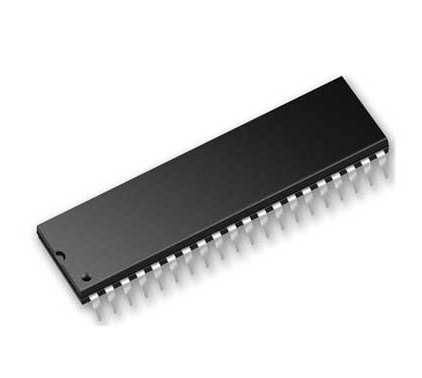

| GENERAL DESCRIPTION AMD’s Am85C30 is an enhanced pin-compatible version of the popular Am8530H Serial Communications Controller. The Enhanced Serial Communications Controller (ESCC) is a high-speed, low-power, multiprotocol communications peripheral designed for use with 8- and 16-bit microprocessors. It has two independent,full-duplex channels and functions as a serial-toparallel, parallel-to-serial converter/controller. AMD’s proprietary enhancements make the Am85C30 easier to interface and more effective in high-speed applications due to a reduction in software burden and the elimination of the need for some external glue logic. DISTINCTIVE CHARACTERISTICS ■ Fastest data rate of any Am8530 — 8.192 MHz / 2.048 Mb/s — 10 MHz / 2.5 Mb/s — 16.384 MHz / 4.096 Mb/s ■ Low-power CMOS technology ■ Pin and function compatible with other NMOS and CMOS 8530s ■ Easily interfaced with most CPUs — Compatible with non-multiplexed bus ■ Many enhancements over NMOS Am8530H — Allows Am85C30 to be used more effectively in high-speed applications — Improves interface capabilities ■ Two independent full-duplex serial channels ■ Asynchronous mode features — Programmable stop bits, clock factor, character length and parity — Break detection/generation — Error detection for framing, overrun, and parity ■ Synchronous mode features — Supports IBM® BISYNC, SDLC, SDLC Loop, HDLC, and ADCCP Protocols — Programmable CRC generators and checkers — SDLC/HDLC support includes frame control, zero insertion and deletion, abort, and residue handling ■ Enhanced SCC functions support high-speed frame reception using DMA — 14-bit byte counter — 10 × 19 SDLC/HDLC Frame Status FIFO — Independent Control on both channels — Enhanced operation does not allow special receive conditions to lock the 3-byte DATA FIFO when the 10 × 19 FIFO is enabled ■ Local Loopback and Auto Echo modes ■ Internal or external character synchronization ■ 2-Mb/s FM encoding transmit and receive capability using internal DPLL for 16.384-MHz product ■ Internal synchronization between RxC to PCLK and TxC to PCLK — This allows the user to eliminate external synchronization hardware required by the NMOS device when transmitting or receiving data at the maximum rate of 1/4 PCLK frequency |
