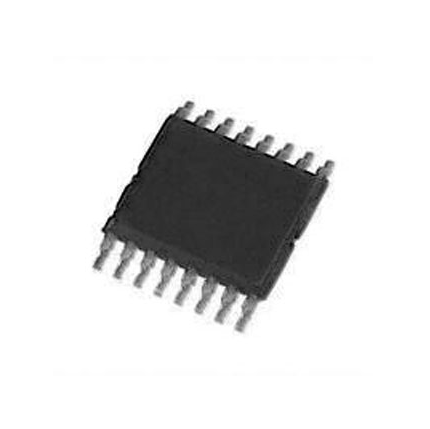

| GENERAL DESCRIPTION The AK4551 is a low voltage 20bit A/D & D/A converter for portable digital audio system. In the AK4551, the loss of accuracy form clock jitter is also improved by using SCF techniques for on-chip post filter. Ana-log signal input/output of the AK4551 are single-ended, therefore, any external filters are not required. The AK4551 is suitable for portable digital audio system, as the AK4551 is lower power dissipation and a smaller package than AK4519. FEATURES □ HPF for DC-offset cancel (fc=3.4Hz) □ Single-ended ADC - S/(N+D): 82dB@VDD=2.5V - Dynamic Range, S/N: 89dB@VDD=2.5V □ Single-ended DAC - Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling - S/(N+D): 85dB@VDD=2.5V - Dynamic Range, S/N: 92dB@VDD=2.5V □ Audio I/F format: MSB First, 2’s Compliment (AK4519 compatible) - ADC: 20bit MSB justified - DAC: 20bit LSB justified □ Input/Output Voltage: 0.6 X VDD (=1.5Vpp@VDD=2.5V) □ High Jitter Tolerance □ Sampling Rate: 8kHz to 50kHz □ Master Clock: 256fs or 384fs or 512fs □ Power Supply: 2.2 to 3.6V □ Low Power Supply Current: 10mA □ Ta = -20 to 85°C □ Very Small Package: 16pin TSSOP |
