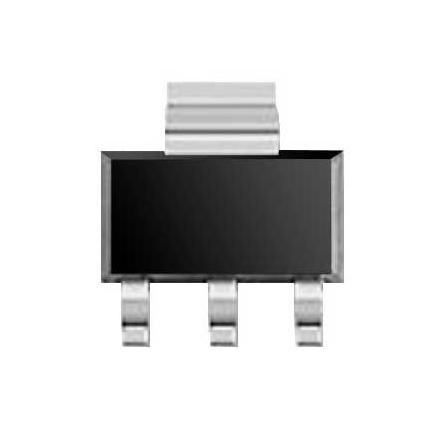

| GENERAL DESCRIPTION The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7V to 8V and delivers a load current up to 1A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1µF output capacitor for stability. FEATURES High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature Ultralow dropout voltage: 190mV (typ) @ 1A Requires only CO= 1.0µF for stability anyCAP is stable with any type of capacitor (including MLCC) Current and thermal limiting Low noise 2.7V to 8V supply range −40°C to +85°C ambient temperature range SOT-223 package APPLICATIONS Notebook, palmtop computers SCSI terminators Battery-powered systems Bar code scanners Camcorders,cameras Home entertainment systems Networking systems DSP/ASIC supplies |
