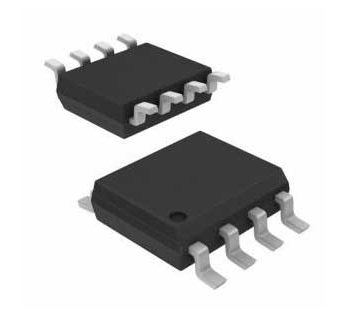

| PRODUCT DESCRIPTION The ADM1020 is a two-channel digital thermometer and under/over temperature alarm, intended for use in personal computers and other systems requiring thermal monitoring and management. The device can measure the temperature of a microprocessor using a diode-connected NPN or PNP transistor, which may be provided on-chip in the case of the Pentium® II or similar processors, or can be a low-cost discrete device such as the 2N3904. FEATURES On-Chip and Remote Temperature Sensing No Calibration Necessary 1°C Accuracy for On-Chip Sensor 3°C Accuracy for Remote Sensor Programmable Over/Under Temperature Limits Programmable Conversion Rate 2-Wire SMBus™ Serial Interface Supports SMBus Alert 70 μA Max Operating Current 3 μA Standby Current +3 V to +5.5 V Supply 8-Lead SOIC Package APPLICATIONS Desktop Computers Notebook Computers Smart Batteries Industrial Controllers Telecommunication Equipment Instrumentation |
