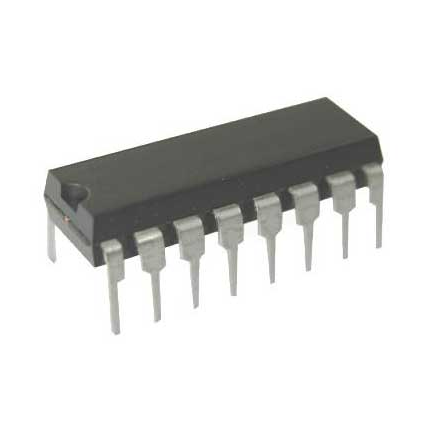

| GENERAL DESCRIPTION The ADG508A and ADG509A are CMOS monolithic ana-log multiplexers with eight channels and dual four channels, respectively. The ADG508A switches one of eight inputs to a common output, depending on the state of three binary addresses and an enable input. The ADG509A switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs. FEATURES 44 V supply maximum rating VSSto VDDanalog signal range Single-/dual-supply specifications Wide supply range: 10.8 V to 16.5 V Extended plastic temperature range: −40°C to +85°C Low power dissipation: 28 mW maximum Low leakage: 20 pA typical Available in 16-lead DIP/SOIC and 20-lead PLCC/LCC packages Superior alternative to DG508A, HI-508 DG509A, HI-509 |
