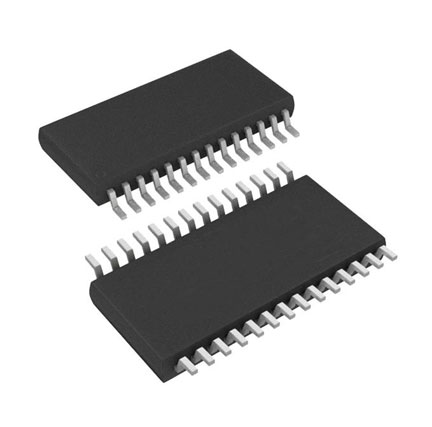

| GENERAL DESCRIPTION The ADD8710 is a low cost, 10-channel gamma buffer with a VCOMdriver that operates from a single supply. The part is designed for high resolution TFT LCD panels, and is built on an advanced, high voltage CBCMOS process. FEATURES Single-supply operation: 4.5 V to 16.5V Upper/lower buffers swing to VS/GND Gamma continuous output current: >10 mA VCOM peak output current: 250 mA Offset voltage: 12 mV Slew rate: 8 V/µs Unity gain stable with large capacitive loads Supply current: 700 µA per amplifier Compact 28-lead TSSOP Pb-free package Drop-in replacement for BUF11702 APPLICATIONS TFT LCD monitor panels TFT LCD notebook panels |
