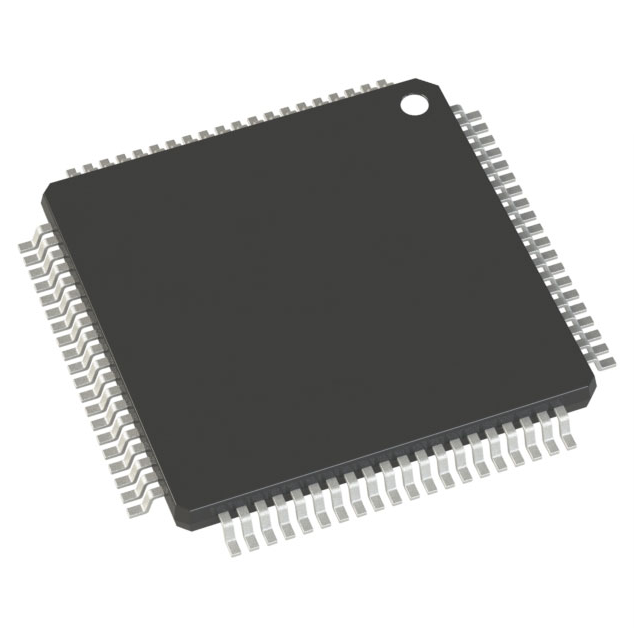

| GENERAL DESCRIPTION The AD9883A is a complete 8-bit, 140 MSPS, monolithic Ana-log interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full power Ana-log bandwidth of 300 MHz supports resolutions up to SXGA (1280 × 1024 at 75 Hz). FEATURES Industrial Temperature Range Operation 140 MSPS Maximum Conversion Rate 300 MHz Ana-log Bandwidth 0.5 V to 1.0 V Ana-log Input Range 500 ps p-p PLL Clock Jitter at 110 MSPS 3.3 V Power Supply Full Sync Processing Sync Detect for Hot Plugging Midscale Clamping Power-Down Mode Low Power: 500 mW Typical 4:2:2 Output Format Mode APPLICATIONS RGB Graphics Processing LCD Monitors and Projectors Plasma Display Panels Scan Converters Microdisplays Digital TV |
