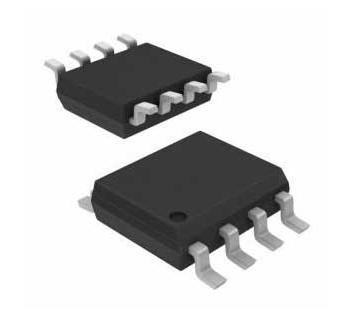

| GENERAL DESCRIPTION The AD828 is a low cost, dual video op amp optimized for use in video applications that require gains of +2 or greater and high output drive capability, such as cable driving. Due to its low power and single-supply functionality, along with excellent differential gain and phase errors, the AD828 is ideal for power sensitive applications such as video cameras and professional video equipment. FEATURES Excellent Video Performance Differential Gain and Phase Error of 0.01% and 0.05 High Speed 130 MHz 3 dB Bandwidth (G = +2) 450 V/ s Slew Rate 80 ns Settling Time to 0.01% Low Power 15 mA Max Power Supply Current High Output Drive Capability 50 mA Mini-mum Output Current per Amplifier Ideal for Driving Back Terminated Cables Flexible Power Supply Specified for +5 V, 5 V, and 15 V Operation ±3.2 V Min Output Swing into a 150 Load (VS = 5 V) Excellent DC Performance 2.0 mV Input Offset Voltage Available in 8-Lead SOIC and 8-Lead Plastic Mini-DIP |
