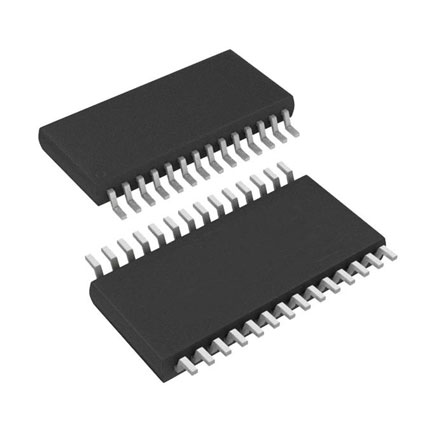

| GENERAL DESCRIPTION This monolithic 3 V CMOS device is a low power, two-channel, input port with signal conditioning. The receive path is composed of two high performance sigma-delta ADCs with digital filtering. A common bandgap reference feeds the ADCs. FEATURES +3 V Supply Voltage Baseband Serial Port (BSPORT) Differential IRx and QRx ADC Channels Two 15-Bit Sigma-Delta A/D Converters FIR Digital Filters 64 dB SNR Output Word Rate 270.83 kHz Twos Complement Coding On-Chip Offset Calibration Power-Down Mode Auxiliary D/A Converter Auxiliary Serial Port (ASPORT) On-Chip Voltage Reference Low Power 28-Lead TSSOP/28-Lead SOIC APPLICATIONS GSM Basestations Pagers |
