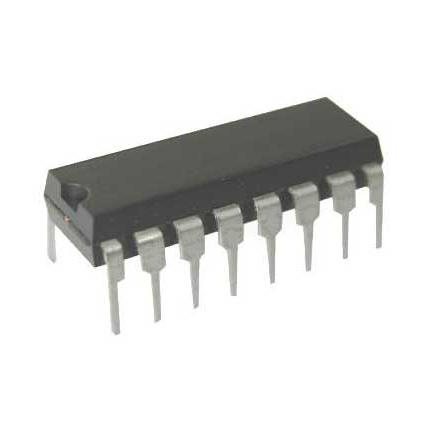

| GENERAL DESCRIPTION The AD7533 is a low cost, 10-bit, 4-quadrant multiplying DAC manufactured using an advanced thin-film-on-monolithic CMOS wafer fabrication process. Pin and function equivalent to the AD7520 industry standard, the AD7533 is recommended as a lower cost alternative for old AD7520 sockets or new 10-bit DAC designs. AD7533 application flexibility is demonstrated by its ability to interface to TTL or CMOS, operate on 5 V to 15 V power, and provide proper binary scaling for reference inputs of either positive or negative polarity. FEATURES Low cost 10-bit DAC Low cost AD7520 replacement Linearity: ½ LSB, 1 LSB, or 2 LSB Low power dissipation Full 4-quadrant multiplying DAC CMOS/TTL direct interface Latch free (protection Scho-ttky not required) Endpoint linearity APPLICATIONS Digitally controlled attenuators Programmable gain amplifiers Function generation Linear automatic gain controls |
